Miles’s foundry

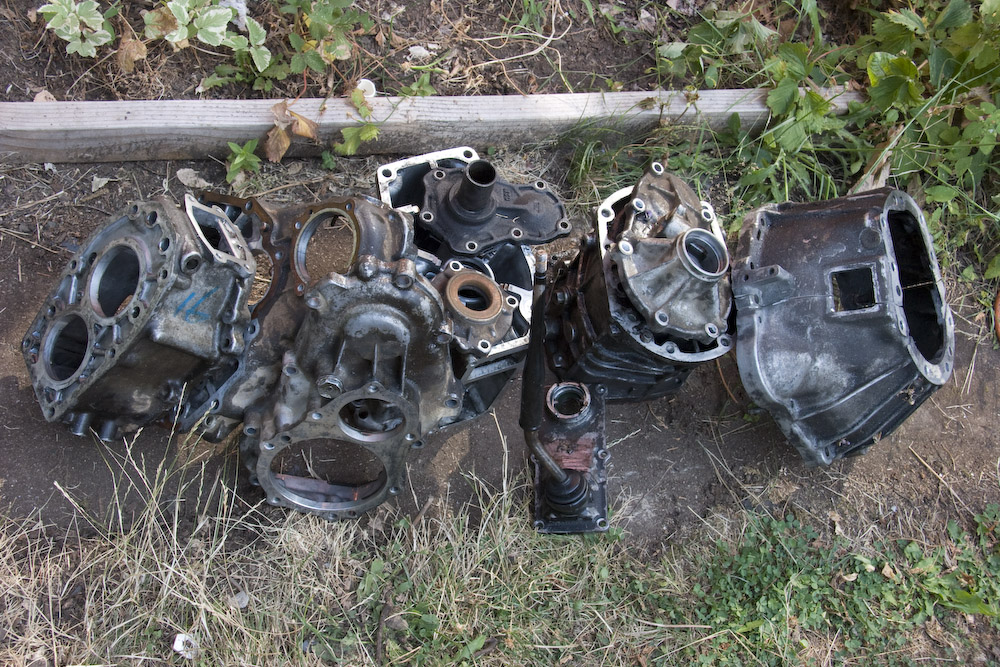

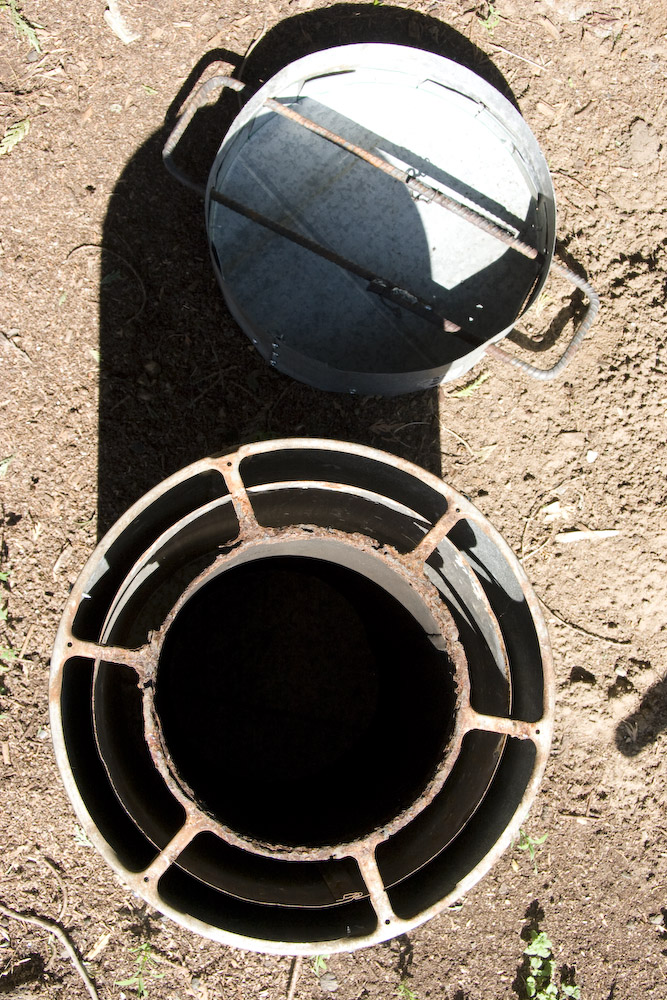

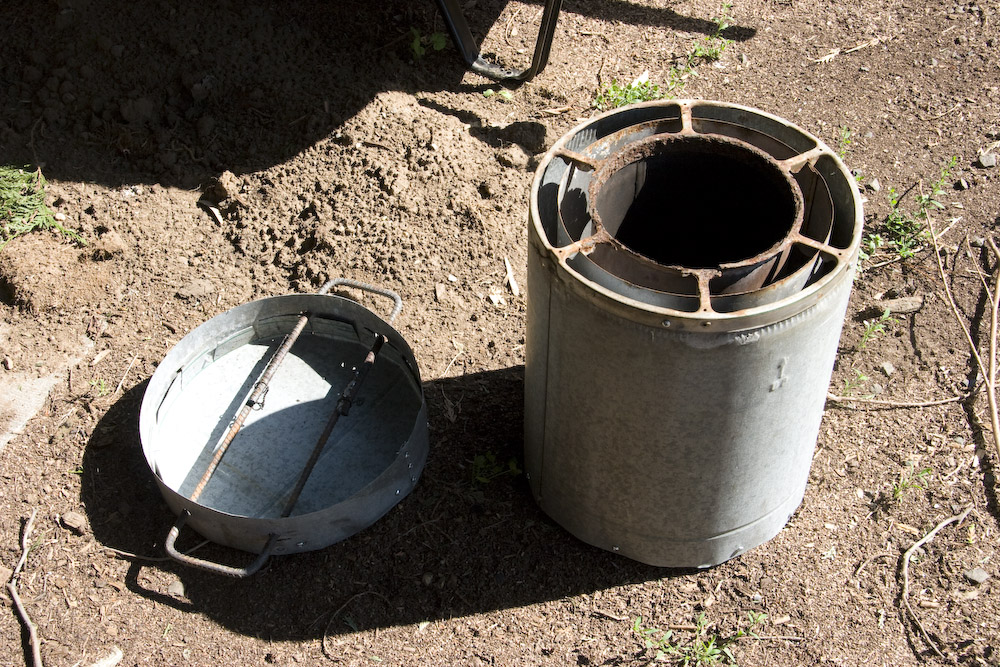

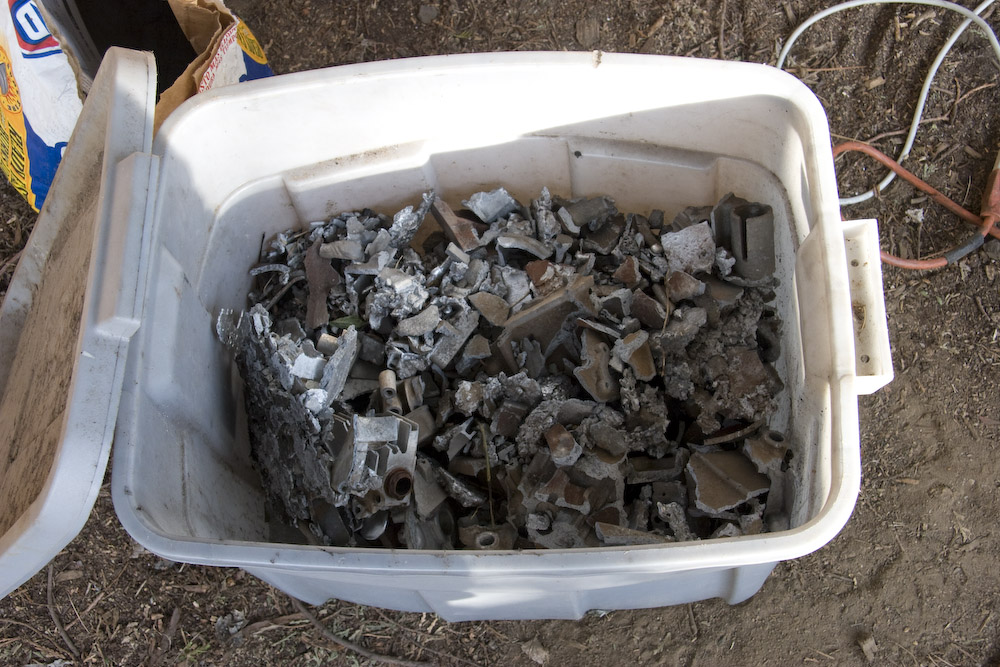

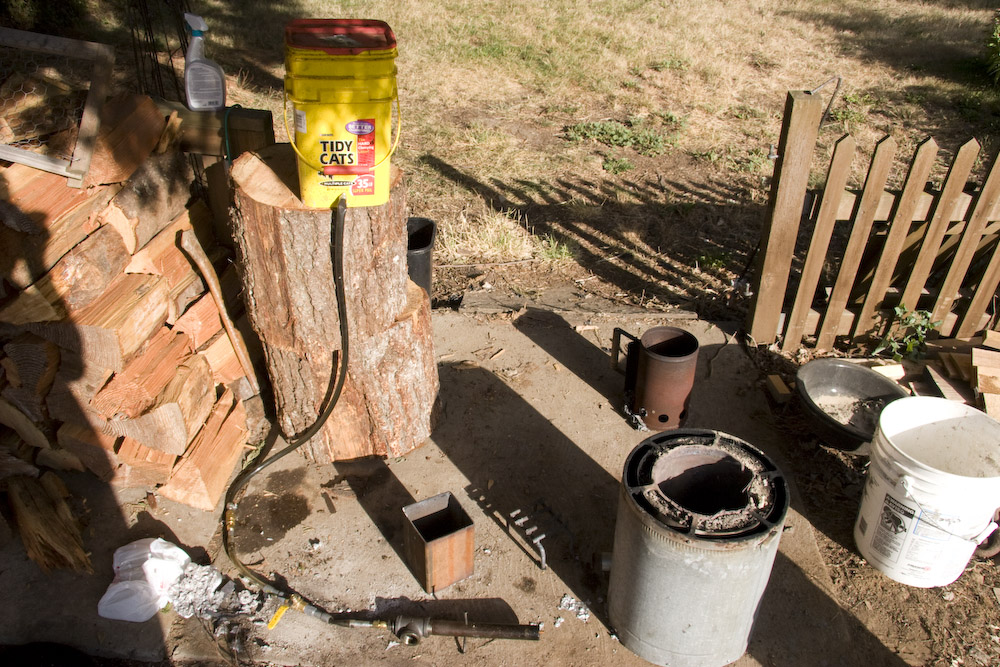

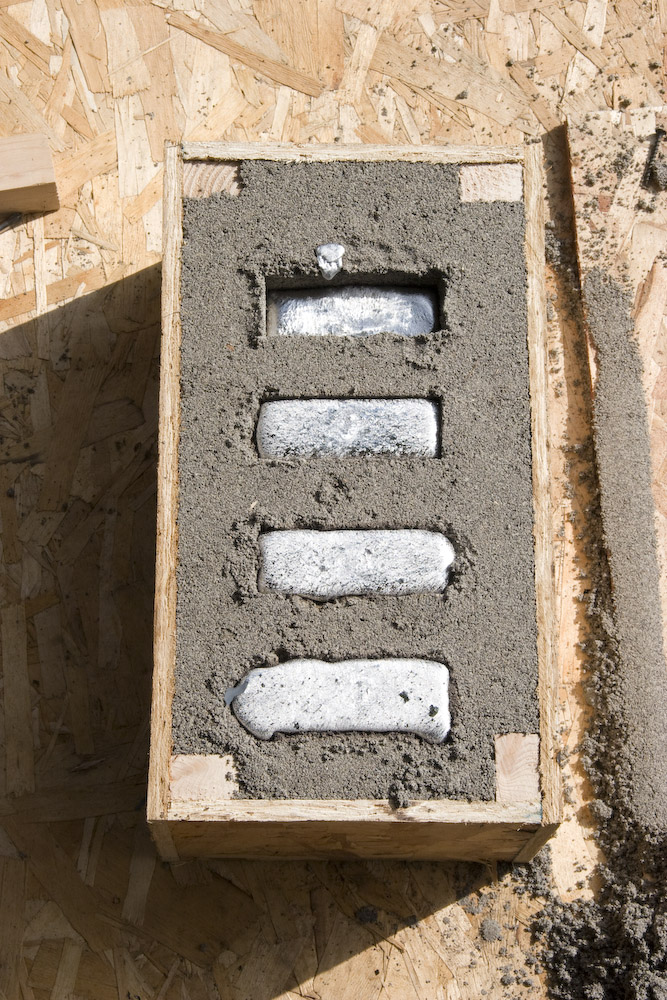

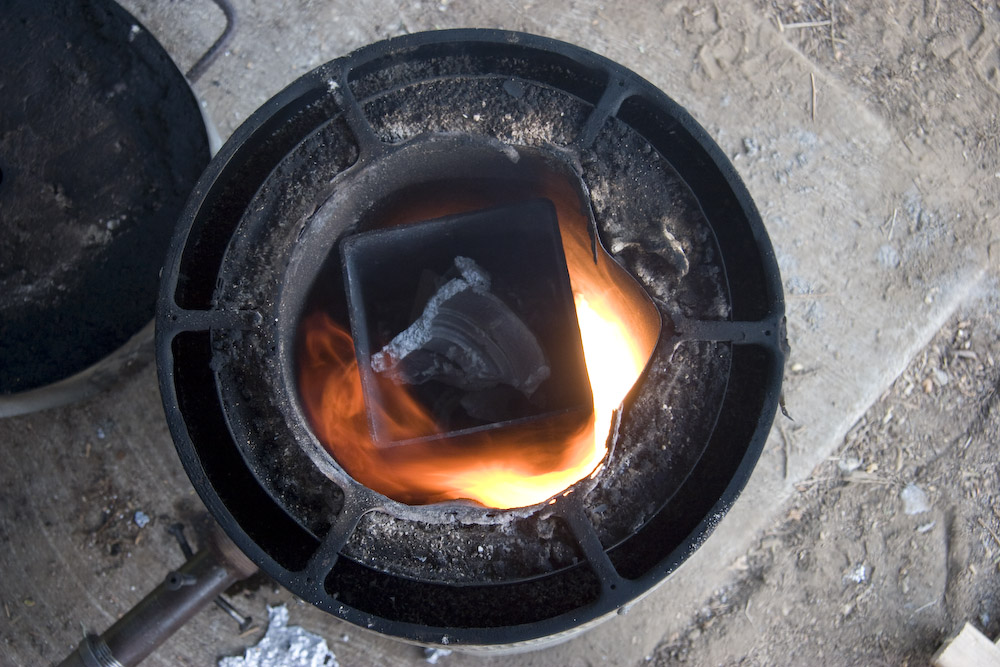

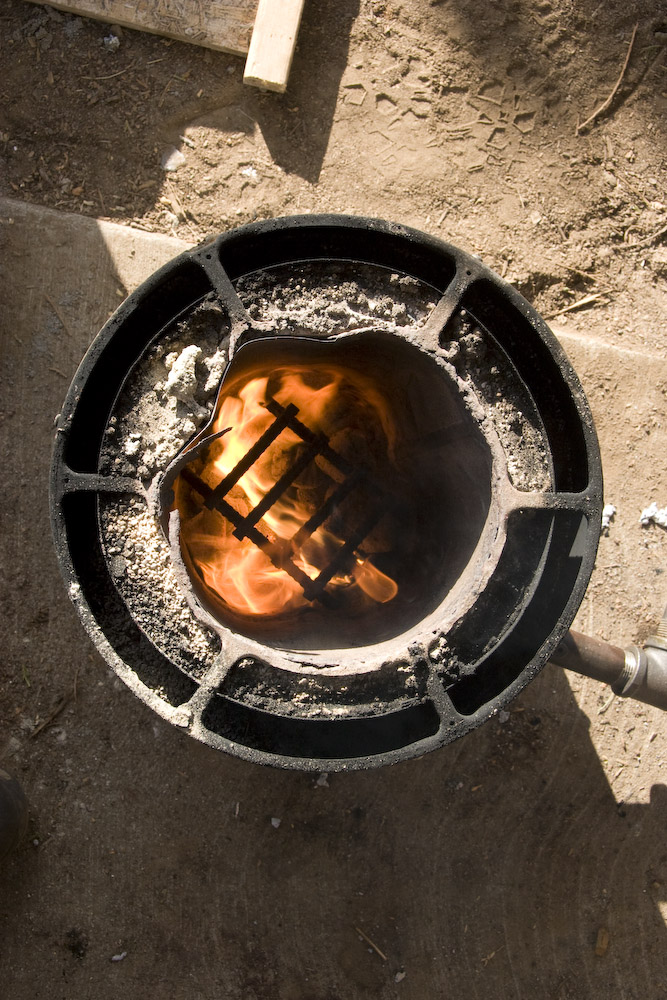

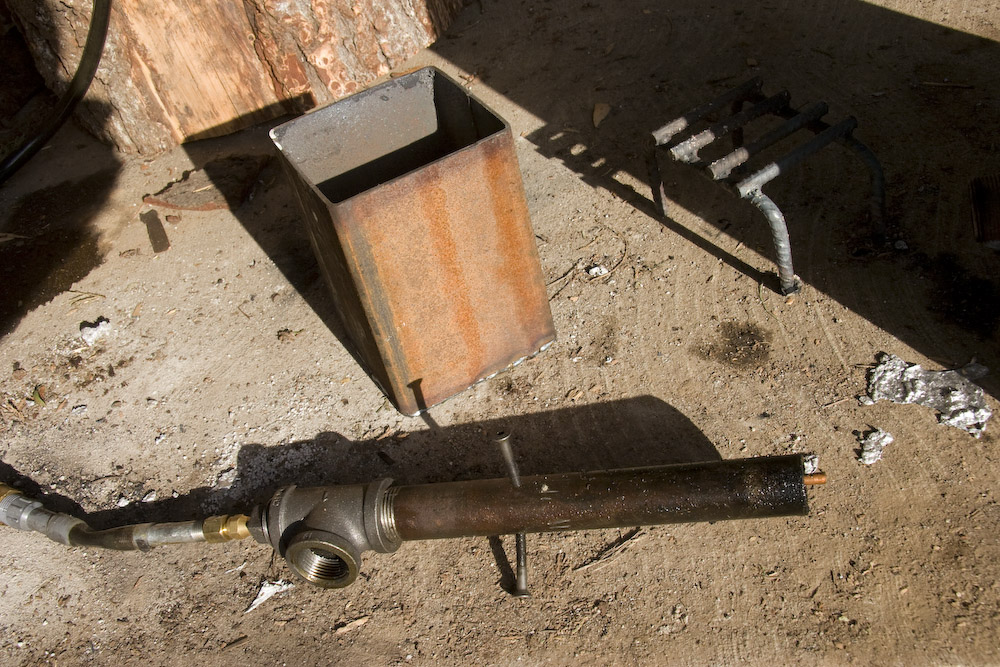

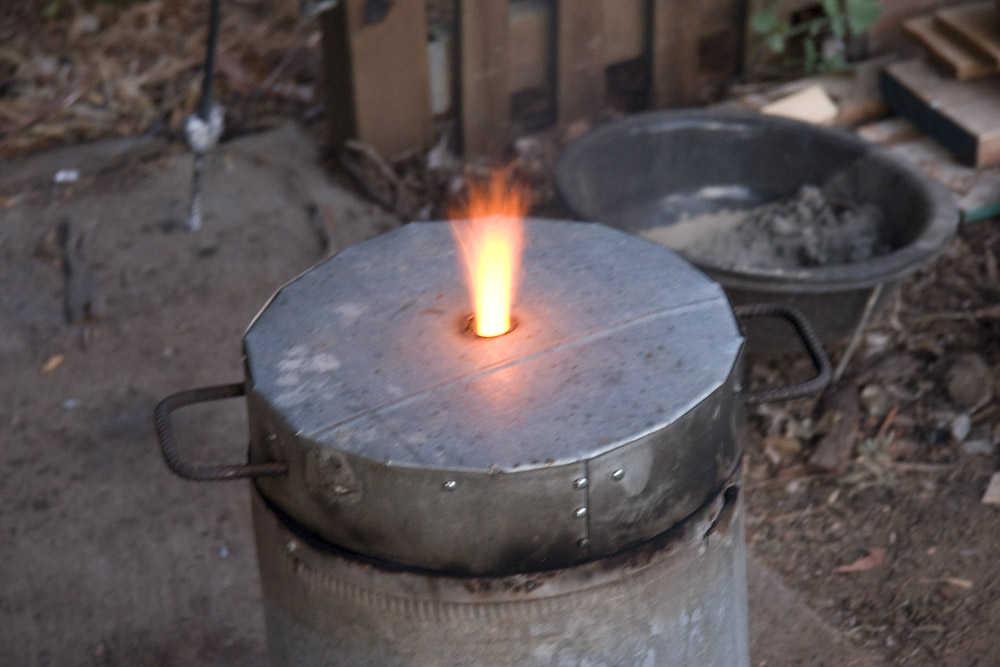

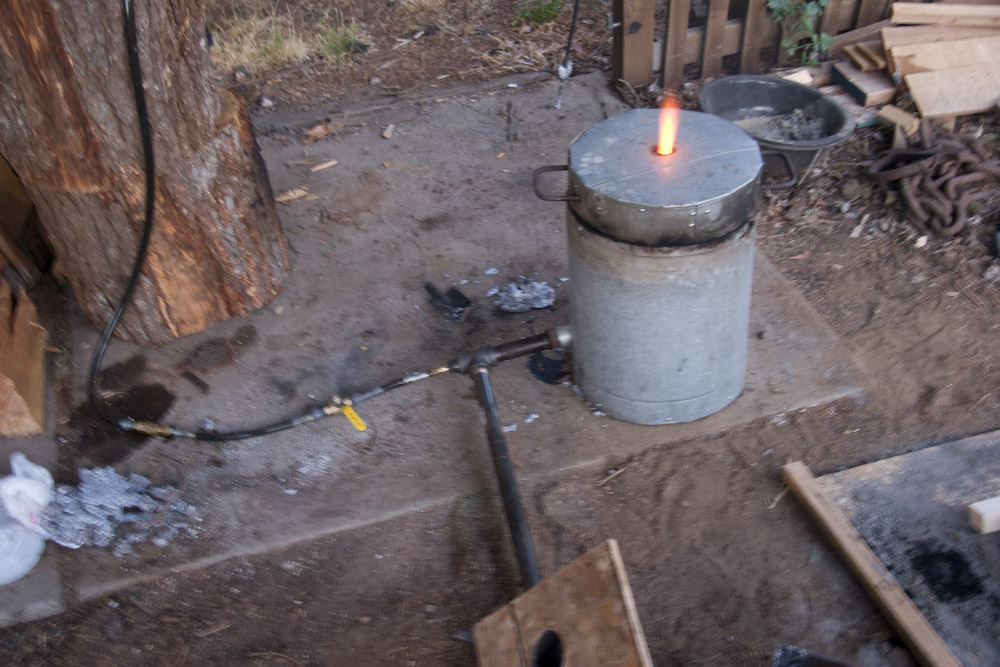

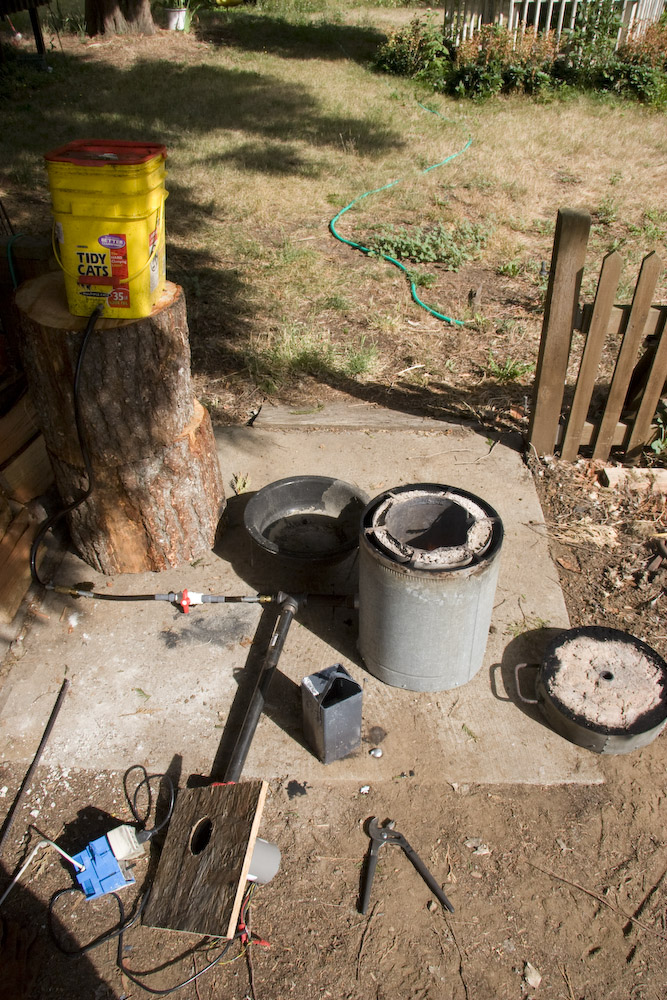

I’ve been wanting to do some metal casting ever since I came across thisseries of books which teaches how to build ones own metalworking machinery. Metalworking is not something I’ve tried before and I don’t really have a need for it (yet, perhaps), but the projects seem cool.In order to build said machinery, you have to first learn how to cast metal and there’s actually a fair amount of interest in this one out there. My favorite link isthis one andthis page in particular. So I got some old broken down lawnmowers from a friend who was moving out of her house and I got an old toyota tranmission from someone off craigslist. Thankfully, I’ve got my big rocket stove to get the larger pieces hot enough to break them into more manageable bits. IMG_0176.jpg IMG_0166.jpg Aluminum melts at 1220 degrees fahrenheit. That seems pretty hot, but it’s actually not. If you take a wood fire and blow air on it, you can reach that. If it sounds like an airplane is about to take off, you’re in good shape. My furnace is made out of an old piece of wood stove venting. IMG_0058.jpg IMG_0059.jpg The inner space was filled with a simple mix of concrete, fireclay, sand, and perlite. I filled the outer space with just perlite to act as insulation. What do I use for fuel? Used motor oil of course. I had some “laying around” from the last couple times I changed the oil in my truck. The link above as well as this one prompted me to try it. As always, click the pictures below for larger images. The basic idea is to blow air into whatever it is you’re burning. In my case, I start with some charcoal, maybe 10 or 15 pieces. If you look closely at the picture on the right, you’ll notice a length of 1/4″ copper tubing sticking out both ends. The two bolts you see and one that you don’t hold the tubing centered. The left end is connected to some plastic tubing, through a valve to the kitty litter bucket on the chopping rounds. To connect to the kitty litter bucket, I simple drilled a hold a little smaller than the 3/8″ nipple (I wrote nipple, huh huh) Also notice the small fireplace rack looking thing in the upper right corner of the picture on the right. That’s to give the flame some room to combust. It’s just rebar bent and welded. To lift the “crucible” (AKA the 5″ tubing) I used pliers. While this works, I need to rig up a better way to maneuver the thing. IMG_0175.jpg IMG_0174.jpg Here’s setup again fully assembled. This one has the valve I used at first. The adjustment is very sensitive. I quickly go from not much action to full liftoff. I now have a metal ball valve. still very sensitive, but less sticky. Also, note the first ingots. IMG_0169.jpg IMG_0168.jpg Here are some shot of the foundry running. IMG_0177.jpg IMG_0178.jpg IMG_0180.jpg IMG_0181.jpg
